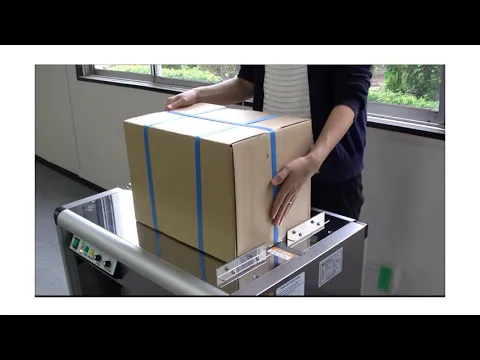

→Introducing the new iQ-400 Semi Auto Strapping Machine, StraPack’s new semi-automatic strapping machine with dual tension mode. This allows for a wide variety of applications with just a flick of a switch.
Quick Start Up (just 45 seconds)
Runs PP strap from 5mm – 15.5mm (200mm core) without change parts
Torque Mode (for stronger tension, or to strap springy packs) or
Stroke Tension (for delicate packs)
Tension up to 450N (45.9kgf)
Compact: W780mm x D540mm x H777mm (with work guides)
Table Height: 752mm
Quiet: Only 57 dB
Light: Only 56kg
Energy efficient: Only 0.25Kw
Min Pack Size W100 x H30mm
Minimal moving parts (easy to maintain, low operation cost)
Tool-free access to frequently accessed areas (easy maintenance)
All electric components in enclosed cabinet on one side of the machine (easy maintenance)
Can be supplied with side and rear panels
Support Plates to stabilise taller packs, leaflets or banknotes
Adjustable Legs to adjust table height from 755 – 925mm (not available with side and rear panels)
| Dimension | Width | 780 mm | 30-3/4 in. |
| Height | 775 mm(with work guide) | 30-1/2 in.(with work guide) | |
| Depth | 543 mm | 21-3/8 in. | |
| Weight | 56 kg. | 124 lbs. | |
| Table Height | 750 mm | 29-1/2 in. | |
| Min. Package Size | W 100 X H 30 mm | W 3-7/8 X H 1-1/8 in. | |
| Joint / Strap/ Coil | heat seal / polypropylene
ID 200 or 230 X W 200 mm |
heat seal / polypropylene
8 X 8 or 9 X 8 in. |
|
| Strap Width / Thickness | 5, 6,9,12 (15.5) mm /0.45-0.7mm | 1/4,3/8,1/2 (5/8) in./ 0.017-0.027 in. | |
| Strap Tension | Max. 500 N (51 kgf) or 150mm stroke | Max. 112 lbsf. or 6″ stroke | |
| Power Supply | 100-120, 200-240 V 1 Phase 50 / 60 Hz 0.25 kW | ||
The iQ-400 Semi Auto Strapping Machine is a durable and heavy-duty strapping machine designed to withstand various harsh environments.
The iQ-400 Semi Auto Strapping Machine is yet amazingly quiet to operate and well suited for office use also.
The iQ-400 Semi Auto Strapping Machine has less moving parts, which makes it easy to maintain and keeps the operation cost low.
The iQ-400 Semi Auto Strapping Machine runs strap from 5 millimeters to 15.5 millimeters (5/8 inches) without additional parts.
All electric parts are arranged in one side of the machine, enclosed in the cabinet, for easy maintenance and protection of crucial parts.
The torque tension mode is suitable for stronger tension or to strap compressible packages, while the stroke tension mode is best for soft tension or quick operation.
Tool-free access to frequently accessed areas for easy maintenance.
Hinged tables are easy to remove for daily maintenance.
