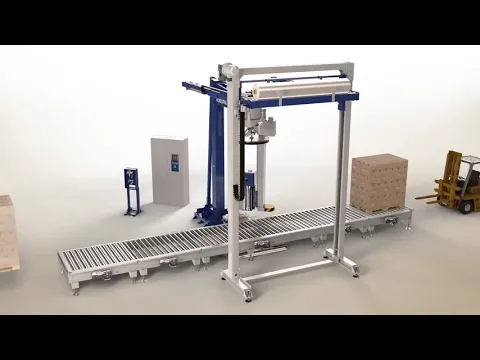

→The Rototech 3000 Fully Automatic Rotating Arm Stretch Wrapping Machine is the ideal solution for fully automatic wrapping with stretch film of products particularly unstable.
The ability to keep the pallet still and stabilize products running a rotating arm is often a necessity for many industries.
The Rotary family is of superior quality in a technological environment important for the end packaging line.
Rototech 3000 Rotating Arm Stretch Wrapping Machine has excellent technical and construction and is the ideal choice to run the pallet wrapping reliably and effectively.
Benefit
Max load weight | kg | 1500 |
Arm rotation speed | rpm | 7÷15 |
Carriage up-down speed | m/min | 2,5÷7,2 |
Maximum product dimensions (LxW) | mm | 1750×1000 (W conveyors=1100 mm) / 1650×1200 (W conveyors=1300 mm) |
Maximum product height | mm | 2000 std. 2400/2750 opt. |
Film carriage type | PGS, PVS | |
Film stretch | adjustable from panel | |
Film pre-stretch | fixed 250% std. (PGS), variable 150-400% (PVS) | |
Power supply voltage | V | 400 3Ph + N + PE |
Power supply frequency | Hz | 50/60 |
Max reel dimensions | mm | 500×300 |
Max reel weight | kg | 20 |
Film thickness | μm | 17÷35 |
Air consumption | Nl/min | 300 |
Air pressure | bar | 6 |
