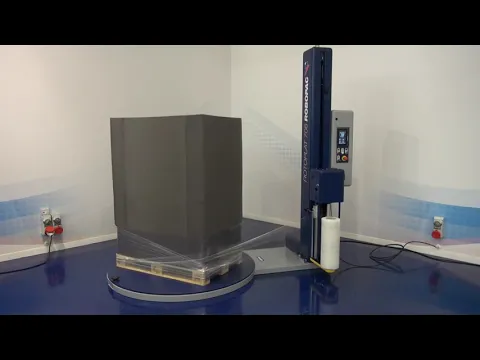

→ROTOPLAT Semi-Auto Turntable Stretch Wrapping Machine to meet the growing demand for packaging customization and optimization regarding specific product features, Robopac is introducing Cube Technology for the first time, the innovative hardware and software solution installed on all ROTOPLAT Series 8 models. The high-performance 7-inch color touch screen with icons specifically designed and created by Robopac has led to the implementation of the Cube Technology function.
Rotoplat Series 8 Model
Rotoplat 308
Rotoplat 508
Rotoplat 708
Rotoplat INOX (Suitable for the food industry)
BENEFITS
| Turntable diameter | mm | 1650 std. 1800 opt. |
| Max load weight | kg | 2000 std. 2500 opt. |
| Turntable speed | rpm | 5÷12 |
| Carriage up-down speed | m/min | 1,5÷5,5 |
| Maximum product dimensions (LxW) | mm | 1000×1200 std. 1200×1200 opt. |
| Maximum product height | mm | 2200 std. 2400/2800/3100 opt. |
| Film carriage type | FR, PDS, PVS | |
| Film stretch | adjustable from panel | |
| Film pre-stretch | n.a. (FR), fixed 250% std (PDS), variable 150-400% (PVS) | |
| Forklifting | front and rear | |
| Power supply voltage | V | 230 V 1Ph |
| Power supply frequency | Hz | 50/60 |
| Installed power | kW | 1,5 (FR) / 1,9 (PDS) / 2,4 (PVS) |
| Max reel dimensions | mm | 500×300 |
| Max reel weight | kg | 20 |
| Film thickness | μm | 17÷35 |
